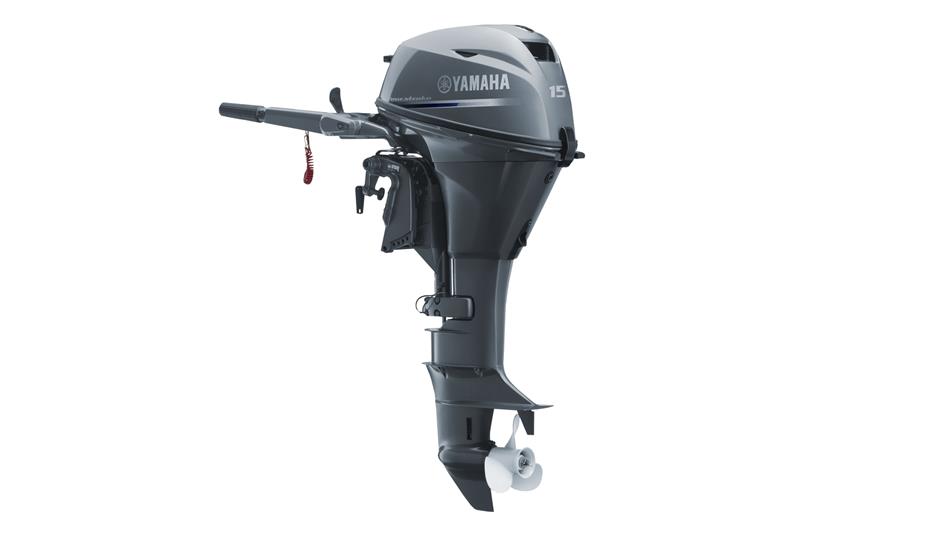

Small-engine convenience, big-engine performance
If you're looking for the winning combination of easy handling and great control, look no further than the F15 or F20.
Versatile twin-cylinder, 4-stroke engines, they combine power and responsiveness to deliver an always-smooth ride. Standout fuel economy also means that they're kinder to the environment, with exhaust emissions cut to a minimum.
Enjoy the extras that a Yamaha outboard also brings, benefits - such as computer-controlled ignition, a special light-load starting system, a water-cooled fuel pump, and a large-volume silencer - normally only found on larger engines. For commercial, professional or leisure use, this all adds up to a winning formula.
Technical Specifications
| Engine type: | 4-stroke//4-stroke |
| Displacement: | 362 cm³//362 cm³ |
| No. of cylinders/configuration: | 2/In-line, SOHC//2/In-line, SOHC |
| Bore x stroke: | 63.0 mm x 58.1 mm//63.0 mm x 58.1 mm |
| Prop shaft output at mid range: | 14.7kW / 5,500 rpm//11.0kW / 5,500 rpm |
| Full throttle operating range: | 5,000 - 6,000 rpm//5,000 - 6,000 rpm |
| Lubrication system: | Wet sump//Wet sump |
| Fuel Induction System: | 1-Carb//1-Carb |
| Ignition / advance system: | CDI//CDI |
| Starter system: | Electric (E, EH, EP), Manual (MH) with prime start™//Electric (E, EH, EP), Manual (MH) with prime start™ |
| Gear ratio: | 2.08 (27/13)//2.08 (27/13) |
| Recommended boat transom height: | S:438mm L:565mm//S:438mm L:565mm |
| Weight with propeller: | F20BMHS: 51.0 kg, F20BMHL: 53.0 kg, F20BES: 52.0 kg, F20BEL: 54.0 kg, F20BEHL: 55.0 kg, F20BEPS: 58.0 kg, F20BEPL: 60.0 kg//F15CMHS: 51.0 kg, F15CMHL: 53.0 kg, F15CES: 52.0 kg, F15CEL: 54.0 kg, F15CEHL: 56.0 kg, F15CEPL: 60.0 kg |
| Fuel tank capacity: | separate, 25 litres//separate, 25 litres |
| Oil pan capacity: | 1.8 litres//1.8 litres |
| Control: | Tiller handle (MH, EH), Remote control (E, EP)//Tiller handle (MH, EH), Remote control (E, EP) |
| Trim & tilt method: | Power Tilt (EP), Manual (MH, EH, E)//Power Tilt (EP), Manual (MH, EH, E) |
| Lighting Coil / Alternator: | 12V - 10A with rectifier/regulator//12V - 10A with rectifier/regulator |
| Propeller: | Included//Included |
| Shallow Water Drive: | Standard//Standard |
| Remark: | The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft |
